As of December 11th, 2019, the USPTO officially issued US Patent 10,524,002 covering aspects of Cloud to Cable TV that were not covered in the initial patent. I received a notification today of my 12th issued US Patent and hopefully more to come in the coming years.

This patent includes several claims that include:

  • Generation of a parallelized set of MPEG TV / DVB Broadcasted to Cable TV systems or IPTV.
  • MPEG TV bi-direccional communication from the Set Top Box to the Cable TV system,
  • Virtualized versions of the broadcasting embodiment
  • and other important claims,




Cloud to Cable TV Patent

The family of patents includes now 10,123,074 and 10,524,002, both patents entail :



As shown herein, those claims include:

  • Two way control messages from Claim 24, Claim 24 itself,
  • injection of MPEG Metadata into the stream,
  • Fault-tolerance system and multicasting server for MPEG encoded video and audio,
  • HTTP Live Streaming, RTSP, or HTTP Playlist
  • Liner and VOD Support based on the claim language
16152606-3

Edge Computing for TV Broadcasting

Both, Cloud to Cable Patents, 10,123,074 and 10,524,002 cover a device or computing system that can be embodied into an edge server located at the Cable TV premises, IPTV System, or even at newly defined 4G LTE and 5G broadcasting platforms.

Cloud to Cable TV brings virtualization to media broadcasting and distribution.

For licensing proposals, partnerships, don’t hesitate to reach me or download the brochure



IP-Cloud-to-Cable-Licensing-public-small

Software Platform and Reference Implementation

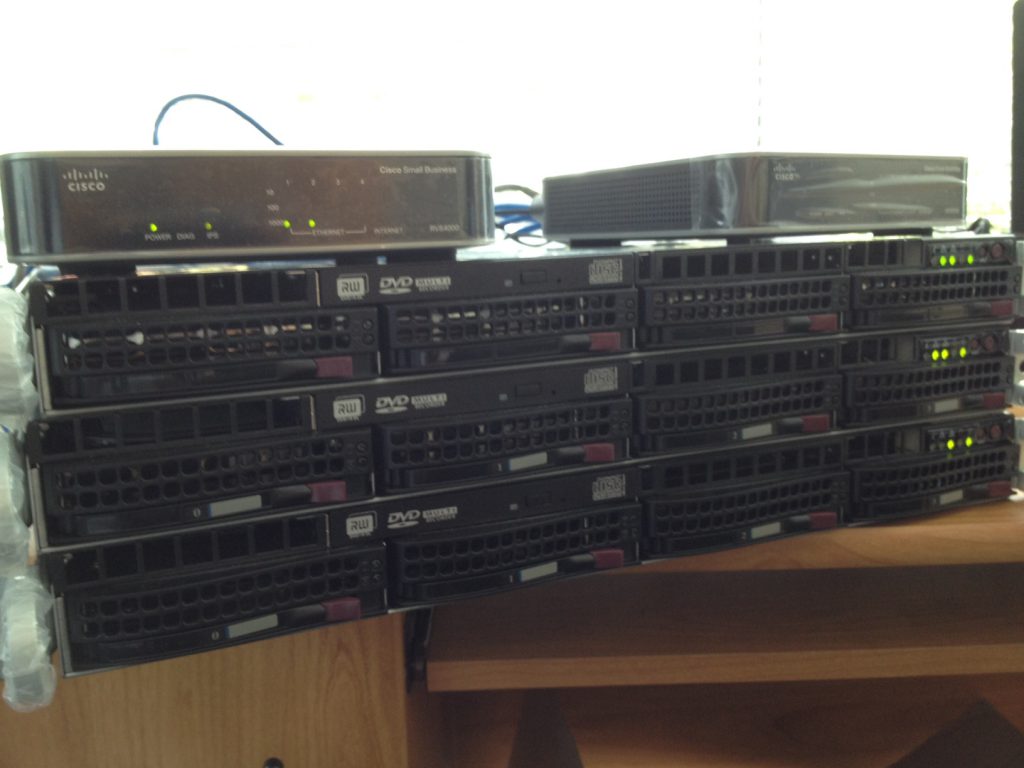

The reference implementation and production device is implemented under our “MediaPlug” or “Mevia” Appliance. In general, any server with 8-16GB of RAM, i7 Intel Processor or AMD, 2TB drive (RAID), ethernet or fiber interfaces is more than sufficient to load all docker  images and be provisioned for media delivery.

Additional Software Requirements

Xen Server 7.2 or higher, or Ubuntu Linux 14.04 or higher with Docker Images.
Sources implemented with PHP, Python, C/C++, BASH, and other modules.

Mux and Cable Headend Requirements

The Cable Headend should consist of a Motorola-based Cherry or any other DVB/MPEG mux. All Set Top Boxes can support multicast streams directly for IPTV systems with fiber, or Coaxial with DOCSIS 2.0-3.0.  MPEG messages and encoding depends on provider.

Formatted for Audio-only, HTML-based Standard Definition (SD), High Definition (HD), 4K, and/or Dolby-digitalSound.
